EBMPAPST Axial Fan 11-127VAC 50/60hz 23 Watt 1500 RPM W1G230-EB97-01A

EBMPAPST Axial Fan 11-127VAC 50/60hz 23 Watt 1500 RPM W1G230-EB97-01A

Regular price $80.00 USD
Regular price $170.00 USD Sale price $80.00 USD
Sale Sold out
Taxes included.
Quantity

Earn 0 points on this purchase.

Learn more

ebmpapst

Axial Fan 11-127VAC 50/60Hz 23 Watt 1500 RPM

Condition: New

MPN: W1G230-EB97-01A

The ebmpapst Axial Fan is a reliable and efficient cooling solution designed for various applications. With a focus on quality and performance, this fan is engineered to meet the demands of industrial and commercial environments.

Nominal Data:

  • Motor: M1G055-BD
  • Phase: 1~
  • Nominal Voltage: 115VAC
  • Frequency: 50/60Hz
  • Speed: 1500 RPM
  • Power Consumption: 23 Watts
  • Current Draw: 0.35A
  • Max. Back Pressure: 36 Pa
  • Ambient Temperature: -30°C to 50°C

Technical Description:

  • Weight: 0.9 kg

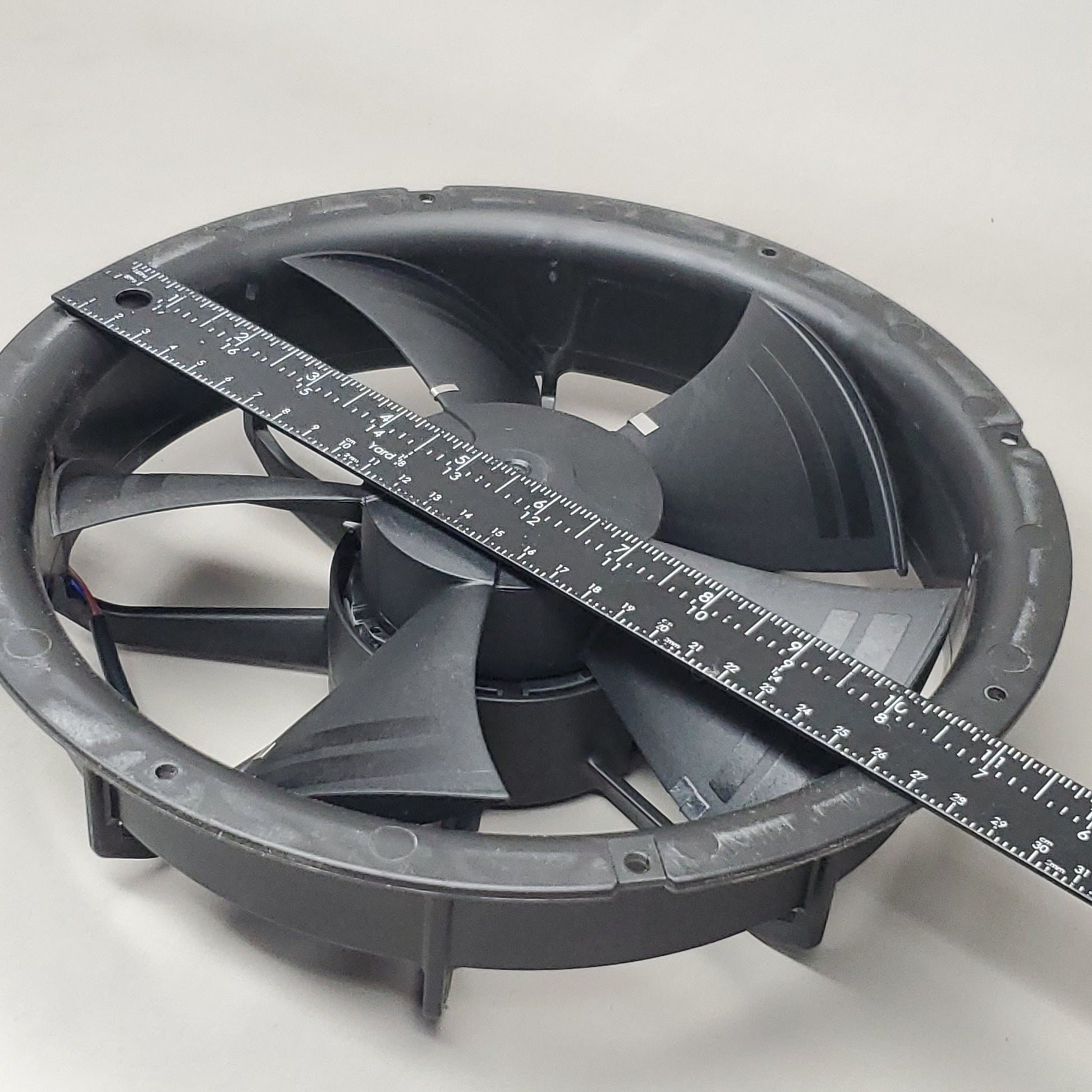

  • Size: 230 mm
  • Motor Size: 55
  • Blade Material: PA plastic
  • Fan Housing Material: PP plastic
  • Number of Blades: 5
  • Airflow Direction: V
  • Direction of Rotation: Counterclockwise, viewed toward rotor
  • Degree of Protection: IP55
  • Insulation Class: "B"
  • Moisture/Environmental Protection Class: H1+
  • Installation Position: Any
  • Condensation Drainage Holes: None
  • Mode: S1
  • Motor Bearing: Ball bearing
  • Technical Features: Speed selection max./min., ESM+ expandable with plug-in module, Soft start, Thermal overload protection for motor
  • Speed Levels: 2
  • Motor Protection: Thermal overload protector (TOP) internally connected with cable Lateral
  • Protection Class: II
  • Conformity with Standards: EN 60335-1; EN 60335-2-24; EN 60335-2-80; EN 60335-2-89; CE
  • Approval: EAC; UL 1004-3; CSA C22.2 No. 77; VDE

The ebmpapst Axial Fan ensures efficient airflow and reliable cooling performance, making it an ideal choice for a wide range of applications. With its durable construction and advanced features, it provides optimal cooling solutions for industrial and commercial settings.
