SOLAREDGE HD-Wave Grid-Tie Non-Isolated Inverter 3800VA 240VAC SE3800H-US (New)

SOLAREDGE HD-Wave Grid-Tie Non-Isolated Inverter 3800VA 240VAC SE3800H-US (New)

Regular price $600.00 USD
Regular price $1,500.00 USD Sale price $600.00 USD
Sale Sold out
Taxes included.
Quantity

Earn 0 points on this purchase.

Learn more

SOLAREDGE

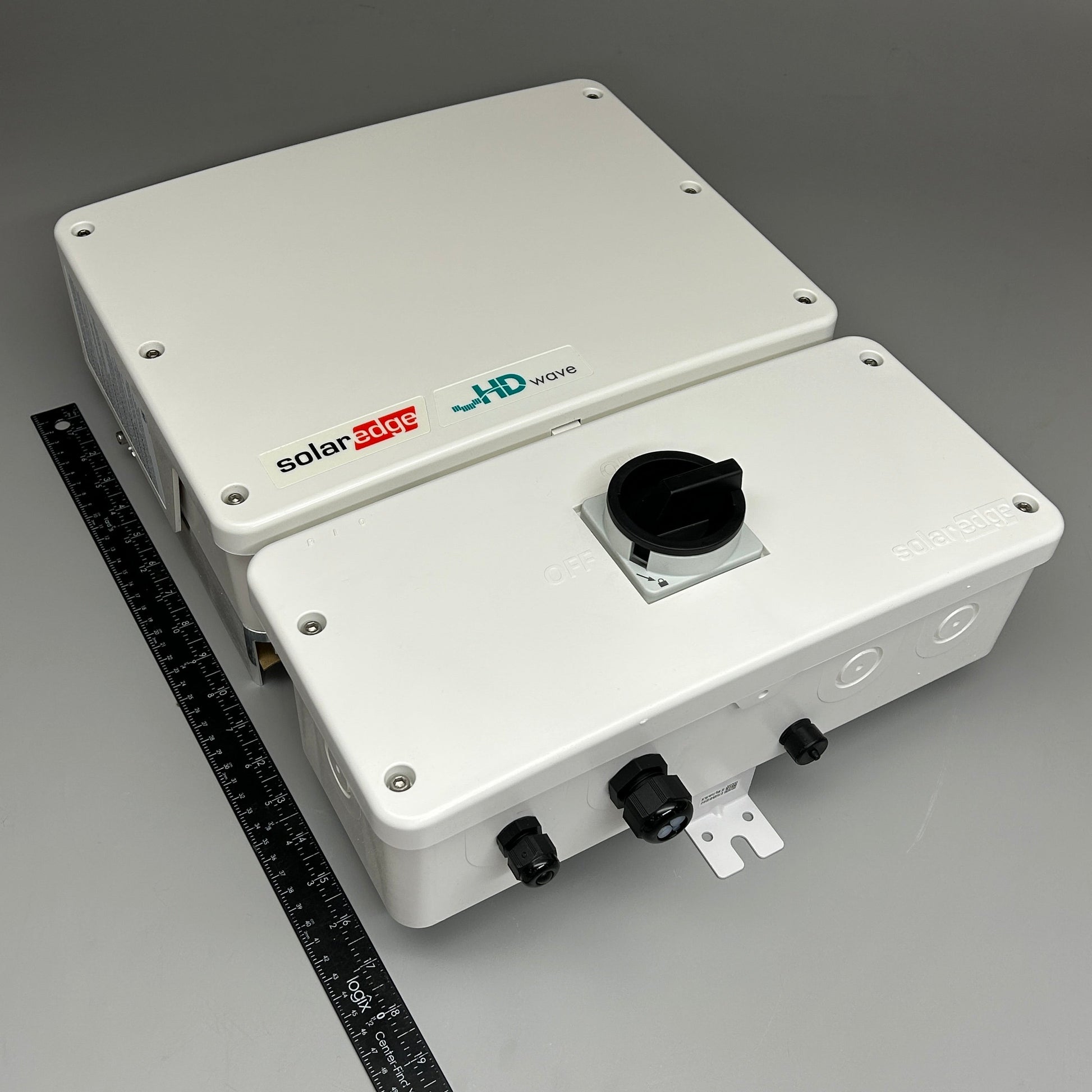

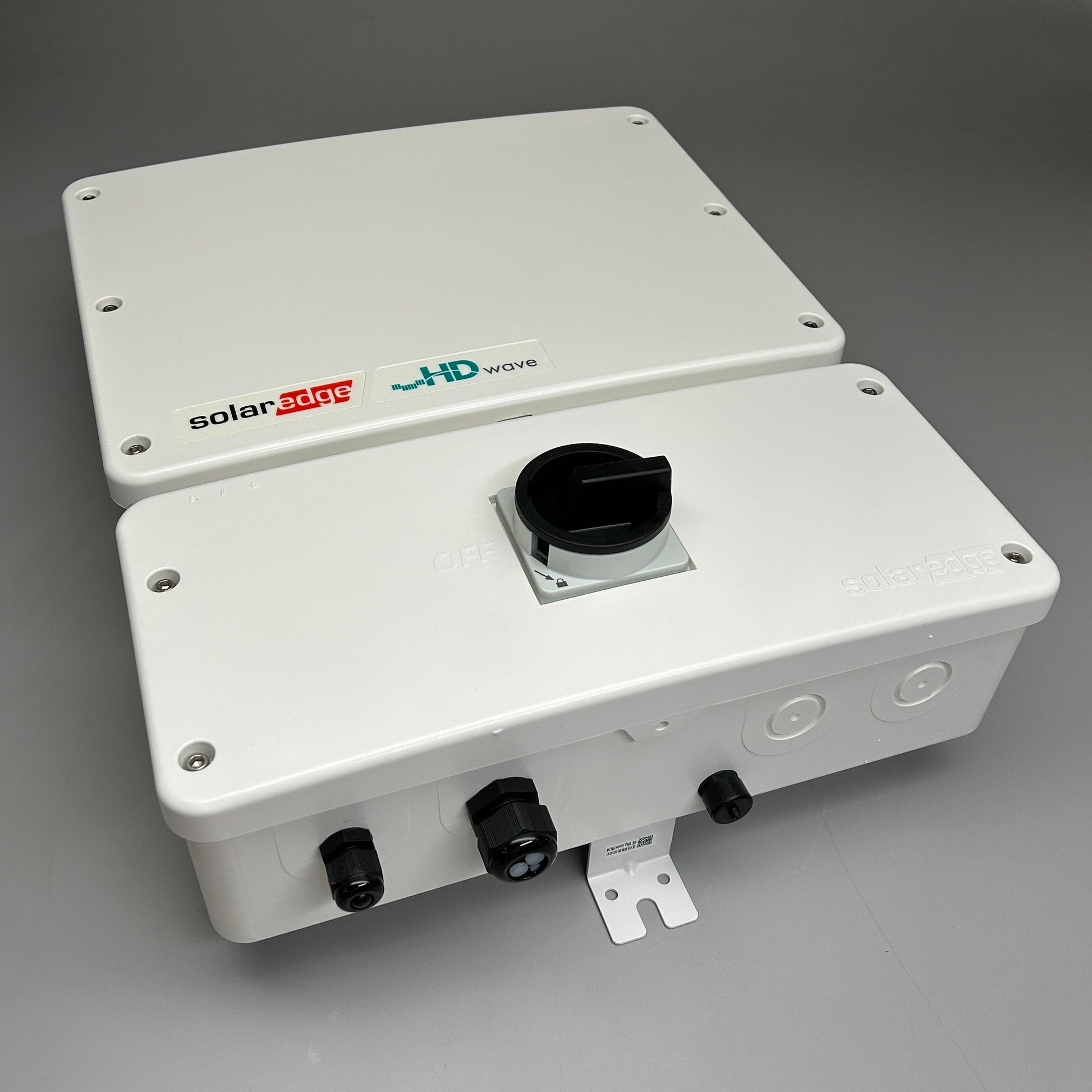

HD-Wave Grid-Tie Non-Isolated Photovoltaic Inverter 3800VA 240VAC

Condition: New

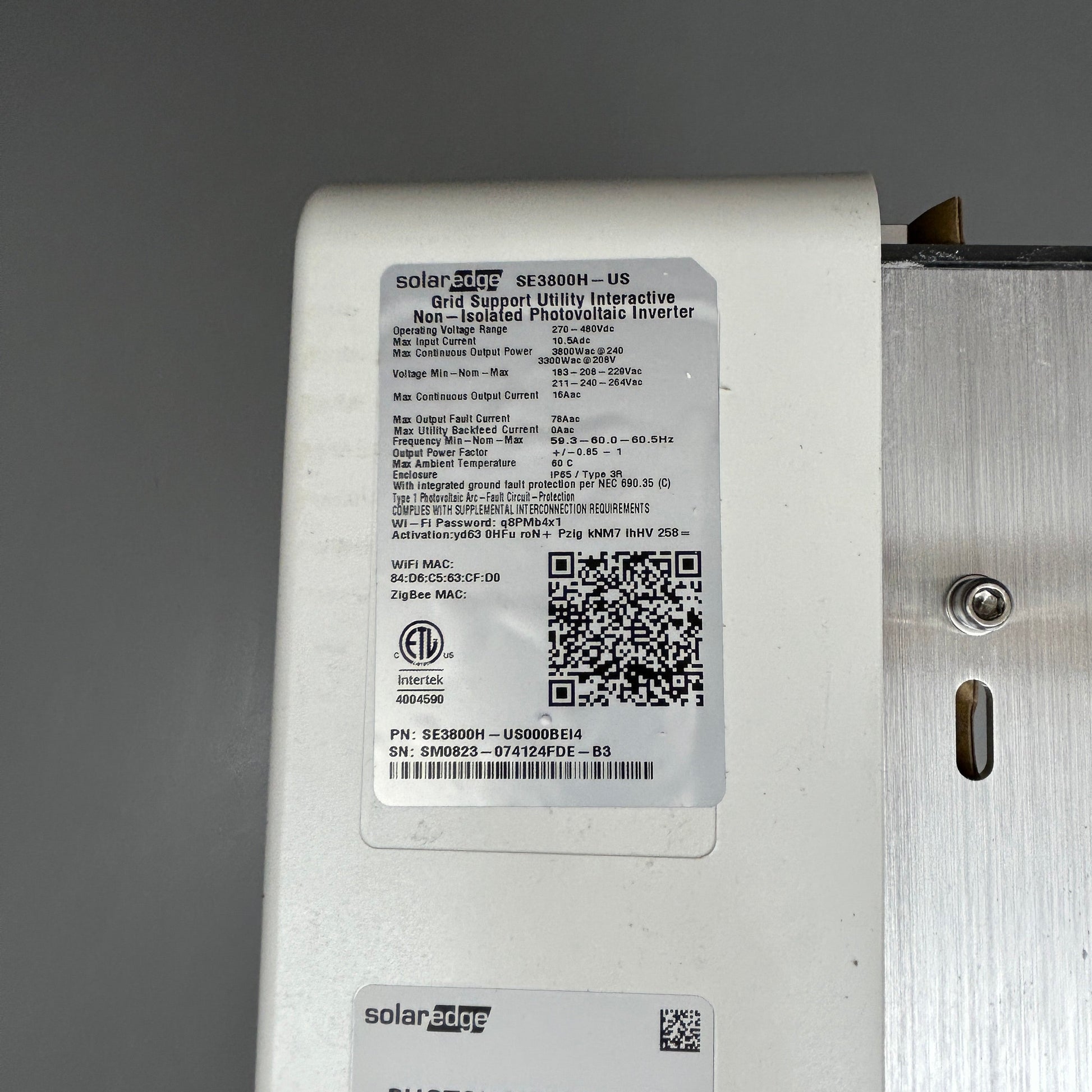

Model: SE3800H-US000BEI4

The SolarEdge HD-Wave Grid-Tie Non-Isolated Photovoltaic Inverter is a cutting-edge solution for maximizing the performance of your solar energy system. Designed with state-of-the-art technology and innovative features, this inverter delivers exceptional efficiency and reliability to ensure optimal energy production.

Specifications:

  • Rated AC power output: 3,800 Volt-Amps
  • AC output voltage: 240 Volts AC
  • Maximum continuous output current: 16 Amps
  • Built-in GFDI protection: Yes
  • Utility monitoring: Yes
  • Islanding protection: Yes
  • Maximum DC power input: 5,900 Watts
  • Maximum input voltage: 480 Volts DC
  • Reverse polarity protection: Yes
  • CEC weighted efficiency: 99%
  • Supported communication interfaces: RS485, Ethernet, ZigBee (optional), Cellular (optional)
  • Revenue grade data, ANSI C12.20: Optional
  • Integrated arc fault protection for NEC 2011 690.11
  • NEC 2014 690.12 shutdown compliant: Yes
  • Safety standards: UL1741, UL1699B, CSA C22.2, Canadian AFCI according to T.I.L. M-07
  • Grid connection standards: IEEE1547, Rule 21, Rule14 (HI)
  • RF emissions compliance: FCC Part 15 Class B
  • AC Output Conduit Size / AWG Range: 0.75-1" Conduit / 14-6 AWG

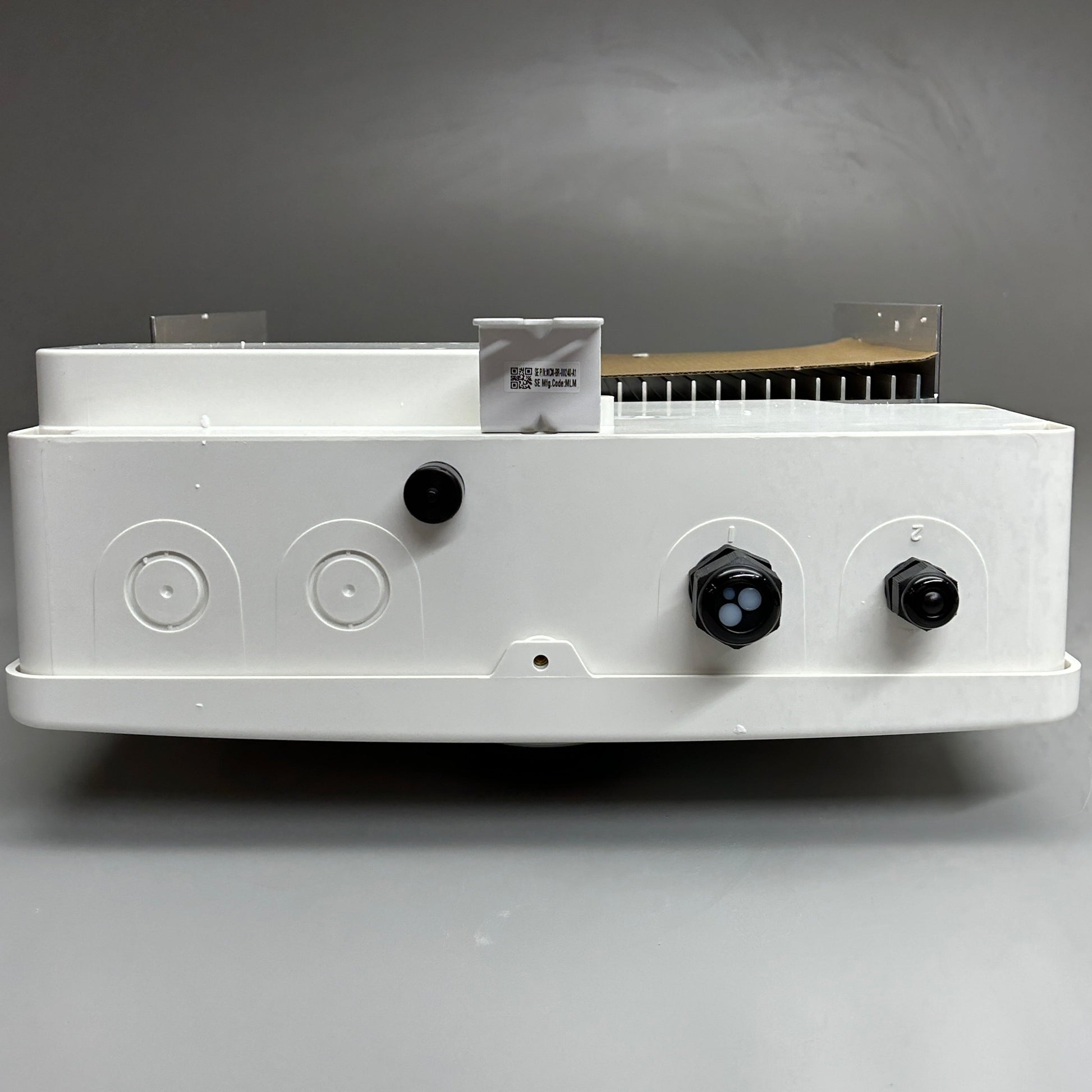

  • DC Input Conduit Size / # of Strings / AWG Range: 0.75-1” Conduit /1-2 strings / 14-6 AWG
  • Dimensions with Safety Switch (HxWxD): 17.7" x 14.6" x 6.8"
  • Weight with Safety Switch: 22 lbs
  • Cooling: Natural convection
  • Protection rating: NEMA 3R for indoor and outdoor locations

Experience the future of solar energy with the SolarEdge HD-Wave Grid-Tie Non-Isolated Photovoltaic Inverter. With its advanced features and exceptional performance, it's the perfect choice for maximizing the efficiency and reliability of your solar power system.
